Code Atlas

The problem

When an AI coding agent writes most of a codebase, nobody keeps a mental model of it. Bugs can only be thrown back at the agent, and each fix can break something else, because the agent also sees only part of the system. File trees and raw call graphs show the structure but not the intent: they draw the complexity as spaghetti.

I wanted a tool that shows what each part of the code does, how a feature actually runs, and what a change will touch, before anyone edits anything.

How it works

1. 1Parse

   • TypeScript compiler API
   • Symbols, imports, ordered calls

2. 2Resolve

   • Type checker finds the real target
   • Follows aliases across files

3. 3Graph

   • Stable IDs from path and signature
   • No line numbers

4. 4Roles and impact

   • Entry, orchestrator, core, utility, data
   • Callers, files and entry flows affected

5. 5Workbench

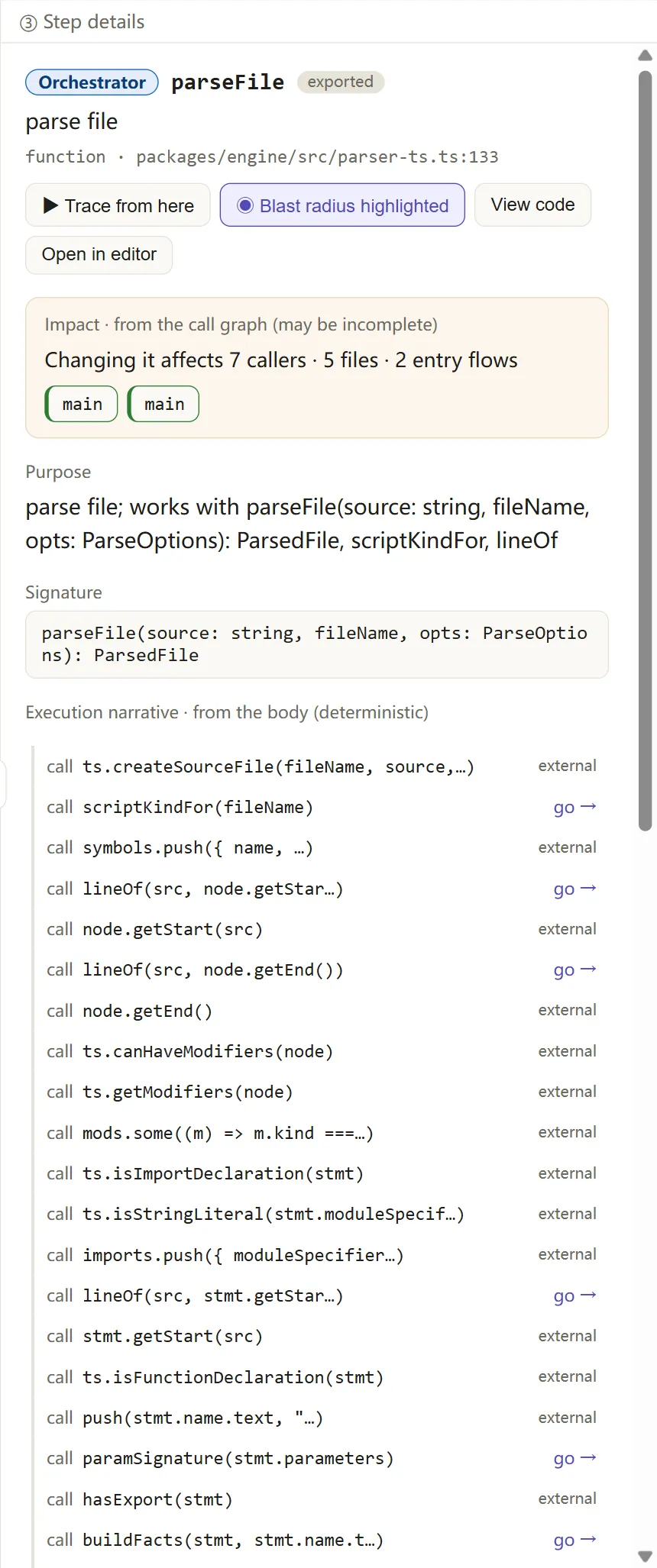

   • Ledger, flow trace, dossier
   • Live re-index on save

Saving a file re-indexes the repository and the map updates without a page reload.

Key decisions

• From “a file tree in disguise” to role, entry and flow. The first version let you zoom through directories, which turned out to be the file tree with a new skin. The redesign organises the code by what it does (its role), where a feature starts (its entry point) and the order its steps run in.
• Calls resolved by the type checker, not by name. Matching calls by function name drops or misroutes edges; a test with two classes that both have a run() method proves the difference. Resolving each call with the TypeScript type checker connects it to the real declaration, across files and aliases.
• Stable IDs without line numbers. IDs are built from the file path and a hash of the signature, so the map doesn’t jump around when someone edits a file above a function.
• The LLM as an optional layer. Claude can add plain-language labels, step-by-step explanations and structured change plans, but every view works from deterministic facts alone, and the interface says honestly when no model is connected.
• Safe edits. A change plan is applied only when the text to replace occurs exactly once, and never outside the repository.
• Animation instead of 3D. 3D views hurt program comprehension through occlusion and lost spatial memory, so motion is used only where it means something: replaying a flow in execution order and rippling an impact outward by call distance.
